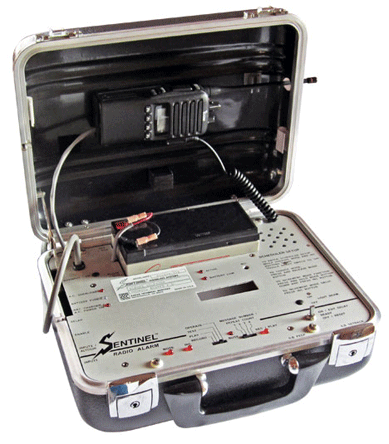

| PC2224 - Wireless 4 Channel, three zones with exit/entrance delay and built-in Scheduler
|

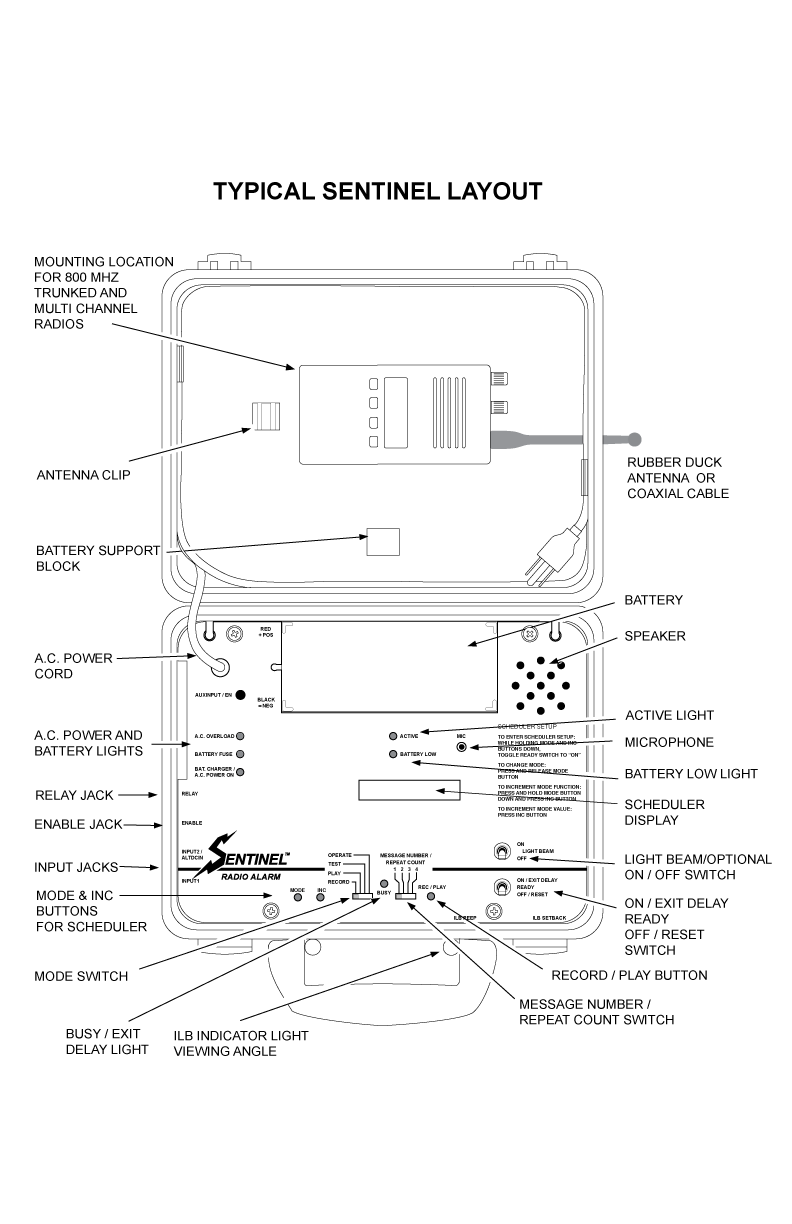

| datasheet | layout | manual | price each: $3150 |
|
| Specifications |
| User recorded Messages |
4 maximum, variable in length, 16 seconds total time
|
| Permanent Messages |
5, preamble, exit/entrance delay, ready, battery low, sensor battery low
|
| Radio Transmitter |
1 to 5 watts Icom, other or user supplied FCC approved
|
| Frequencies |
VHF, UHF, land mobile, 800/900 trunked and conventional
|
| Inputs |
Two Input jacks for external hardwired sensors or other control device, Normally Open, Active = Closed
|
|
WLRX, 4 channel wireless reciever, internal
|
|
Enable, close contacts to disable unit
|
|
ALTDCIN, This Optional input is used for external D.C. voltage input 17-24 VDC, i.e. Solar panel input jack is rated at 1 Amp maximum
|
| Outputs |
One antenna jack, for portable rubber duck type (BNC connector optional) for other antennas/cables
|
|
Relay contact, 1 Form C, normally open
|
|
Scheduler liquid crystal display
|
| Controls |
Ready toggle switch - panel mounted
|
|
Mode switch - record, play, test, operate
|
|
Message/Repeat Switch 1-4 positions
|
|
Play/Record button
|
|
Scheduler Mode button
|
|
Scheduler Inc button
|
| Carrying case |
Metal frame and plastic shell, Zero Manufacturing
|
| Dimensions |
5" deep x 12" wide x 9" high.
|
| Power requirements |
115 VAC ± 10%, 20 watts during transmit, 300 milliwats in READY mode, built-in power supply/battery charger and internal rechargeable 12.6 volt 7 Ahr sealed battery (NP7-12) The Battery is fused with a 4 amp fast fuse.
|
| Wireless sensor system |
Linear Corp. DX series
|
| Environmental |
Temperature range -30º to 60º C ( -22º to 140º F) |
