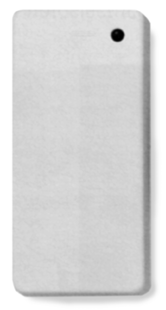

| WLVIBDX - Vibration Sensor - same as WLDWDX with built in vibration sensor
|
| datasheet | price each: $190 |
|
| Specifications |
| Power |
Two 3V 2032 lithium batteries (supplied)
|
| Current Consumption |
8 mA average while transmitting 1 ľA standby
|
| Battery Life |
Three years (typical)
|
| Measured Range |
700 feet in open air, one quadrant;
|
| 500 feet minimum in open air (four quadrant test)
|
|
| Code Outputs |
Alarm, restore, low battery
|
| External Input Terminals |
Terminals 1, 2 accept N/C contact devices; Terminals 2, 3 accept N/O glass break sensors
|
| JUMPER PIN MODE SELECTION
|
|
| Pins 1, 2 |
Glass break operation only
|
| Pins 2, 3 |
For external contact and glass break operation
|
| Pins 3, 4 |
For internal reed switch and glass break operation
|
| Jumper removed |
Internal, external, and glass break operation
|
| Operating Frequency |
315 MHz
|
| Operating Temperature |
32° to 120° F (0° to 49° C)
|
| Dimensions |
1.6" W x 3.4" H x 1.2" D (41 x 86 x 30 mm) |
